Nguồn gốc:
Jiangsu, Trung Quốc
Hàng hiệu:
PassionCo
Chứng nhận:
ISO19031/AS1869
Số mô hình:
1/4"-1"
Product Description

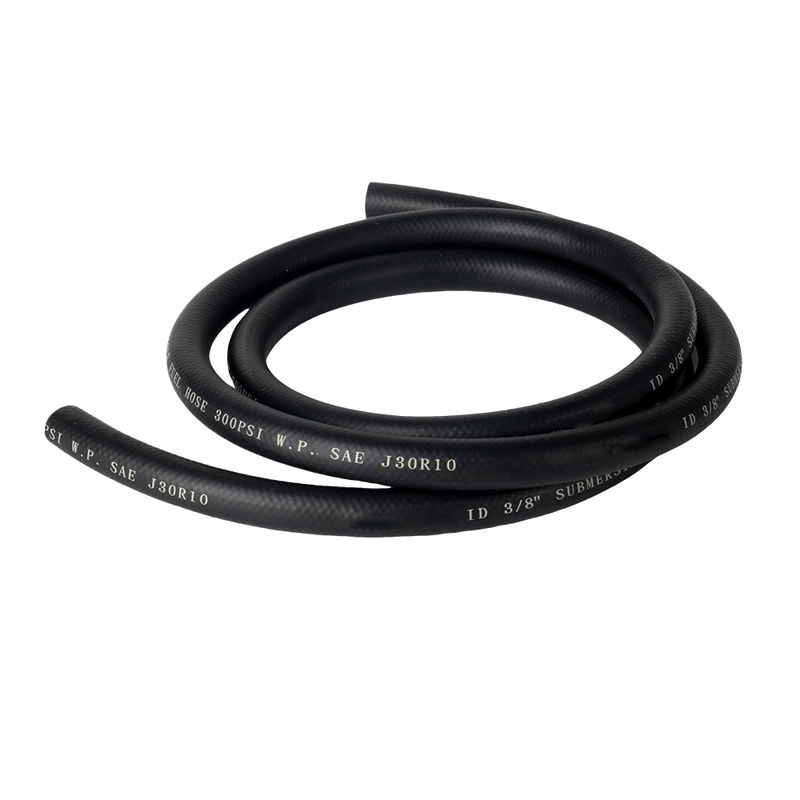

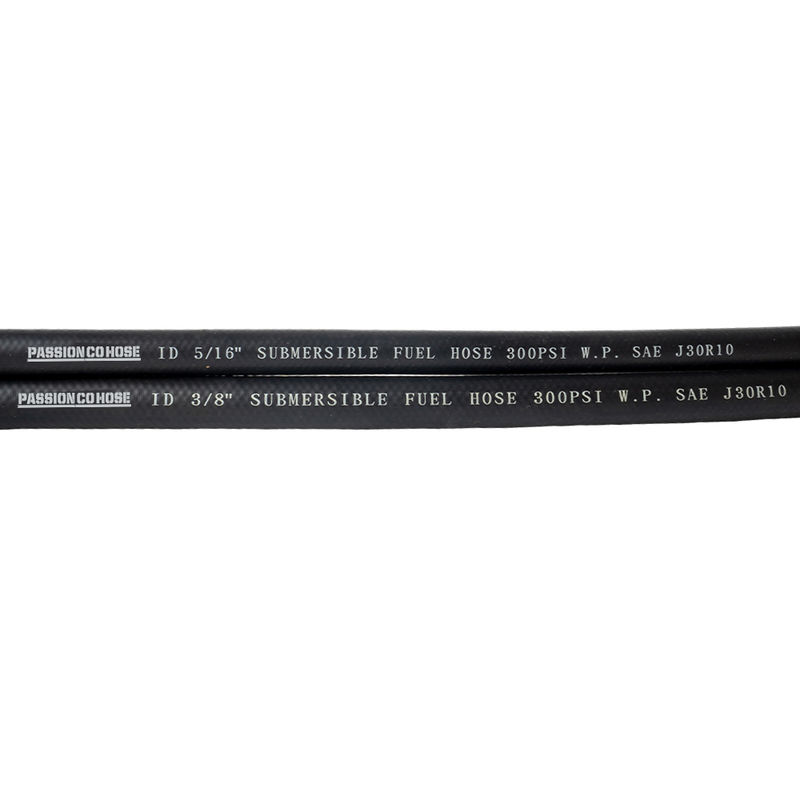

High-Performance SAE J30 R10 Submersible Fuel Hose | Resistant to Gasoline, Diesel, Ethanol & E85 Fuels | Built for In-Tank Fuel Pumps
Sizes Available: 1/8" to 1" | Aramid Fiber Reinforced | Continuous Immersion Fuel Hose
The SAE J30 R10 Submersible Fuel Hose is specifically designed for fuel pumps inside gas tanks. Unlike conventional hoses, this hose is capable of continuously handling fuel both inside and outside of the hose wall, making it ideal for fully immersed fuel applications.
Engineered with FKM cover and strong aramid fiber reinforcement, it offers excellent resistance to fuel permeation, high temperatures, and aging.
Continuous Fuel Handling
Performs reliably when fully submerged, both inside and outside of the hose.
Excellent Aging Resistance
FKM outer cover ensures durability and extended service life in harsh conditions.
Strong Aramid Fiber Reinforcement
Same fiber used in bullet-proof vests, ensuring strength and no breakage.
High Temperature Resistance
Performs in environments up to +125°C (+257°F).
Fuel Compatibility
Suitable for gasoline, diesel, ethanol blends, and E85 fuels.
Submersible fuel pump assemblies
Automotive and motorcycle fuel systems
Marine fuel tanks
Generator and industrial fuel storage systems
Certifications: SAE J30 R10
Temperature Range: -40°C to +125°C
Construction:
Inner Tube: Strong permeation resistance
Reinforcement: Aramid fiber (high tensile strength)
Outer Cover: FKM, excellent aging and ozone resistance
Packaging: Coils, export cartons, or customized on request
| Layer | Material | Benefits |
|---|---|---|
| Inner Tube | Fuel-resistant compound | Prevents permeation, ensures durability |
| Reinforcement | Aramid fiber | High tensile strength, anti-burst |
| Outer Cover | FKM | Excellent aging, ozone, and fuel resistance |
| Code | Size (inch) | I.D. (mm) | O.D. (mm) | Working Pressure | Burst Pressure |
|---|---|---|---|---|---|
| PJ30R10-02 | 1/8" | 3.2 | 9.0 | 6.89 bar / 100 psi | 34.0 bar / 493 psi |
| PJ30R10-03 | 3/16" | 4.8 | 11.0 | 6.89 bar / 100 psi | 34.0 bar / 493 psi |
| PJ30R10-04 | 1/4" | 6.4 | 12.7 | 6.89 bar / 100 psi | 34.0 bar / 493 psi |
| PJ30R10-05 | 5/16" | 7.9 | 14.0 | 6.89 bar / 100 psi | 34.0 bar / 493 psi |
| PJ30R10-06 | 3/8" | 9.5 | 16.0 | 6.89 bar / 100 psi | 34.0 bar / 493 psi |
| PJ30R10-08 | 1/2" | 12.7 | 20.0 | 6.89 bar / 100 psi | 28.0 bar / 406 psi |
| PJ30R10-10 | 5/8" | 15.9 | 24.0 | 6.89 bar / 100 psi | 28.0 bar / 406 psi |
| PJ30R10-12 | 3/4" | 19.0 | 29.0 | 6.89 bar / 100 psi | 28.0 bar / 406 psi |
| PJ30R10-16 | 1" | 25.4 | 35.0 | 6.89 bar / 100 psi | 28.0 bar / 406 psi |
If you need a reliable, durable, and fully submersible fuel hose, the SAE J30 R10 is the proven solution. Designed to handle gasoline, diesel, ethanol blends, and E85 fuels in the harshest conditions, it ensures maximum safety and performance for automotive, marine, and industrial applications. Bulk orders and custom branding available.
