Nguồn gốc:
Trung Quốc
Hàng hiệu:
PASSIONCOHOSE
Chứng nhận:
REACH, RoHS, CE
Số mô hình:
P3TE
| Part Number | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. (MPa) | B.P. (MPa) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
| P3TE-03 | 3/16" | 5.0 | 12.7 | 16.0 | 64.0 | 40 |
| P3TE-04 | 1/4" | 6.5 | 14.3 | 14.5 | 58.0 | 45 |
| P3TE-05 | 5/16" | 8.0 | 17.0 | 13.0 | 52.0 | 55 |
| P3TE-06 | 3/8" | 9.8 | 18.5 | 11.0 | 44.0 | 70 |
| P3TE-08 | 1/2" | 12.8 | 22.1 | 9.3 | 37.2 | 85 |
| P3TE-10 | 5/8" | 16.0 | 25.9 | 8.0 | 32.0 | 105 |
| P3TE-12 | 3/4" | 19.0 | 29.4 | 7.0 | 28.0 | 130 |
| P3TE-16 | 1" | 25.4 | 36.2 | 5.5 | 22.0 | 150 |
| P3TE-20 | 1 1/4" | 32.0 | 43.2 | 4.5 | 18.0 | 190 |
| P3TE-24 | 1 1/2" | 38.1 | 50.0 | 4.0 | 16.0 | 240 |
| P3TE-32 | 2" | 51.0 | 63.2 | 3.3 | 13.2 | 300 |
Due to its lightweight and flexible nature, the EN 854 3TE is ideal for:
Return lines in hydraulic systems.
Power steering and fuel delivery.
Pneumatic systems and general industrial oil transfer.
Agricultural machinery and mobile equipment where space is restricted.

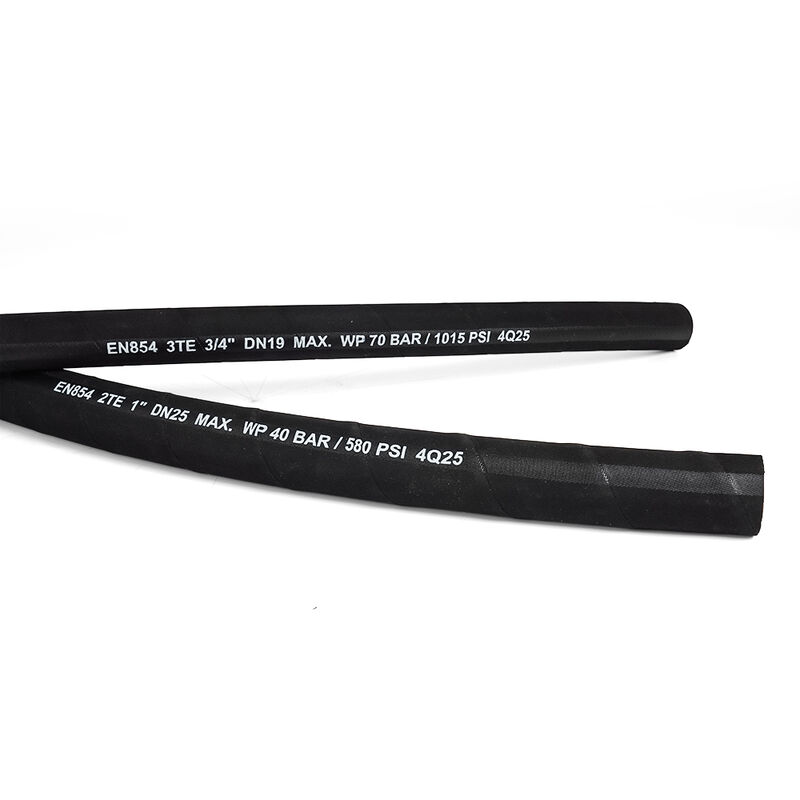

Unlike the 1TE or 2TE variants, the 3TE offers higher pressure ratings while remaining easy to route through tight engine compartments or complex machinery.
