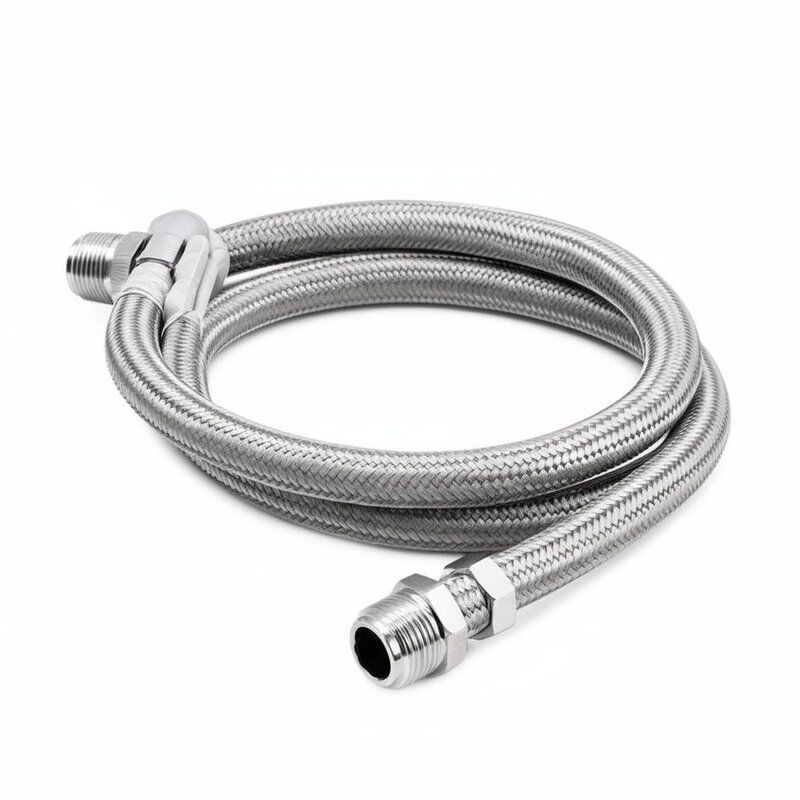

This PTFE steam hose is engineered for demanding commercial ironing and industrial laundry applications. Featuring a smooth PTFE inner tube and stainless steel wire reinforcement, it delivers reliable steam transfer under extreme temperature and pressure conditions.
It is designed to provide stable, safe, and long-term operation for continuous steam systems.
Inner Tube
Smooth bore PTFE, offering superior heat resistance, chemical stability and low friction steam flow.
Reinforcement
High-tensile stainless steel wire braid (SS304 or SS316 available) for enhanced pressure performance and mechanical strength.
Outer Layer
Exposed stainless steel braid for abrasion resistance, corrosion protection and long service life.
Material: PTFE inner tube with stainless steel braided reinforcement
Operating Temperature: –65°C to +260°C
Standard: SAE 100R14
Optional Feature: Carbon-treated PTFE for anti-static performance
Media: High temperature steam, air, chemicals, gases and aggressive fluids
| Part No. | Size | I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) | Working Pressure (bar) | Burst Pressure (bar) |
|---|---|---|---|---|---|---|
| PR14-02 | 1/8" | 3.2 | 6.7 | 16 | 250 | 1000 |
| PR14-03 | 3/16" | 5.0 | 7.6 | 20 | 205 | 820 |
| PR14-04 | 1/4" | 6.5 | 9.4 | 27 | 188 | 752 |
| PR14-05 | 5/16" | 8.0 | 11.1 | 27 | 162 | 648 |
| PR14-06 | 3/8" | 10.0 | 13.2 | 33 | 130 | 520 |
| PR14-08 | 1/2" | 13.0 | 16.2 | 66 | 112 | 448 |
| PR14-10 | 5/8" | 16.3 | 19.4 | 150 | 80 | 320 |
| PR14-12 | 3/4" | 19.0 | 23.0 | 226 | 70 | 280 |
| PR14-14 | 7/8" | 22.5 | 26.2 | 245 | 60 | 240 |
| PR14-16 | 1" | 25.4 | 29.8 | 300 | 50 | 200 |
PTFE tubing maintains performance in continuous high-temperature steam environments without softening, cracking or degradation.
The stainless steel braid provides reliable pressure resistance, ensuring safe operation in industrial steam systems.
Despite its strength, the hose remains lightweight and easy to route in tight or moving installations.
The smooth PTFE inner surface minimizes friction, allowing efficient steam transfer and preventing internal buildup.
PTFE resists aging, corrosion and chemical attack, significantly extending hose service life.
Carbon-loaded PTFE liner can be supplied to reduce electrostatic charge for enhanced safety.
Industrial steam pressing machines
Commercial laundry ironing equipment
Garment finishing and textile processing lines
Central steam distribution pipelines
High-temperature steam and gas transfer systems
