Nguồn gốc:
Trung Quốc
Hàng hiệu:
PASSION
Chứng nhận:
FDA, RoHS, REACH
Số mô hình:
301

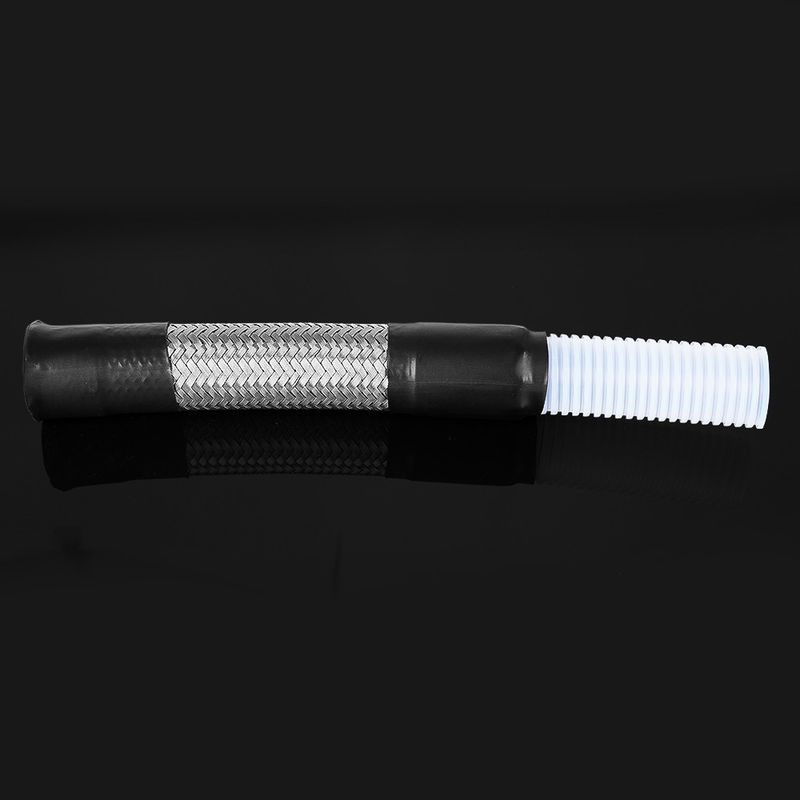

This PTFE hose refers to a highly specialized industrial hose engineered for conveying aggressive chemicals, high-purity fluids, or high-temperature media. Its core is constructed from PTFE (Polytetrafluoroethylene), a material renowned for its exceptional chemical resistance, wide temperature tolerance, and non-stick properties. The "Smooth Bore" feature indicates that the inner liner is seamless and flat, which minimizes pressure drop, prevents clogging, and allows for easy cleaning—critical for sanitary or precise transfer applications. The external "Convoluted" structure, with its distinct bellows-like folds, provides excellent flexibility, allowing the hose to bend and route easily in tight spaces without kinking, while also offering superior resistance to mechanical stress and vibration. This combination makes it an ideal solution for demanding sectors such as chemical processing, pharmaceuticals, food and beverage, and semiconductor manufacturing.
Tube: PTFE
Reinforcement: SS304/316 wire
Temperature: -65C to 260C
Transfer Medium: High temperature oil/water, steam, strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue, etc.
| ID. (inch) | ID.(mm) | OD (mm) | Thickness (mm) | WP (bar) | BP (bar) | Min. Bend Radius (mm) |
| 3/8" | 10 | 13.5 | 1.4 | 90 | 360 | 25 |
| 1/2" | 13 | 16.6 | 1.6 | 83 | 333 | 28 |
| 5/8" | 16 | 20.5 | 1.8 | 75 | 300 | 50 |
| 3/4" | 19 | 23.7 | 2 | 74 | 296 | 63 |
| 1" | 25.4 | 30.8 | 2 | 59 | 236 | 90 |
| 1-1/4" | 32 | 37 | 2 | 38 | 150 | 150 |
Application:
Our Smooth Bore Convoluted PTFE Hose is engineered for demanding applications. It features a non-stick, chemically inert PTFE core with a seamless inner wall to ensure uncontaminated flow and easy cleaning. The exterior convolution provides superior flexibility for easy routing in tight spaces. Ideal for transferring aggressive chemicals, high-purity fluids, and high-temperature media across various industries.
