Nguồn gốc:
Trung Quốc
Hàng hiệu:
PassionCo
Chứng nhận:
CE
Số mô hình:
PCA
video

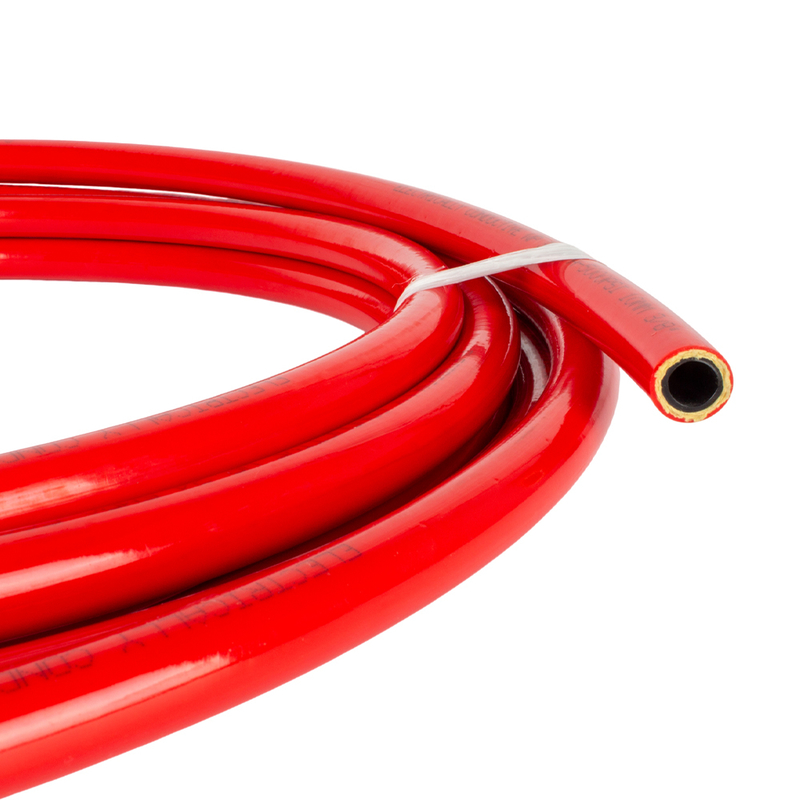

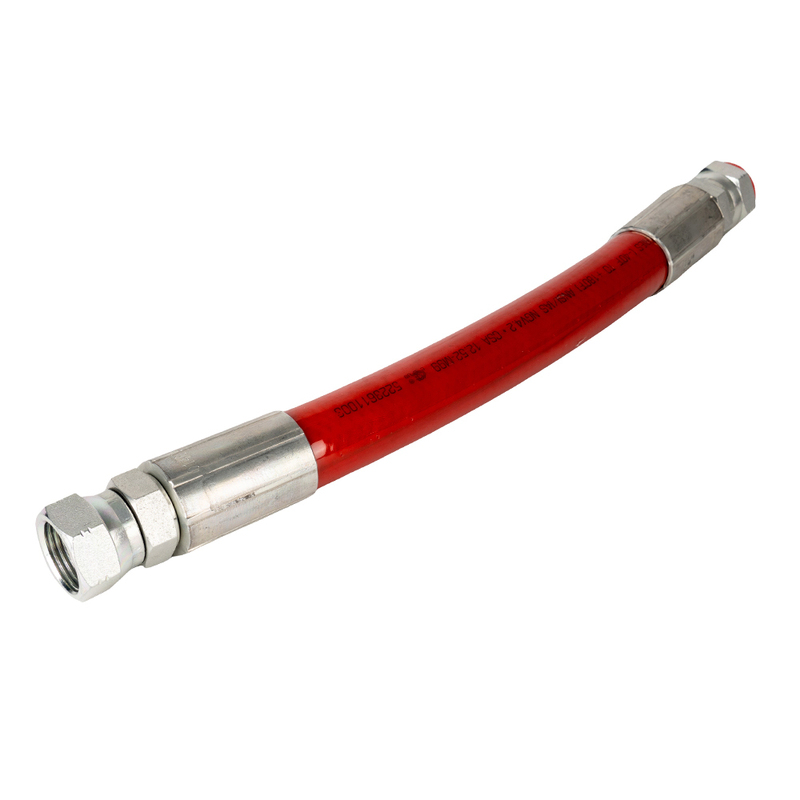

Aramid (Kevlar®) Fiber Braid – Around 40% lighter than steel-braided hoses, allowing easier handling and simpler installation
High Performance – Rated for 350 bar working pressure and up to 1400 bar burst pressure for safe operations
All-Weather Reliability – Operates from -40°C to +85°C, suitable for varied global climates
| Feature | Aramid-Braided Hose | Steel-Braided Hose |
|---|---|---|
| Weight | Under 0.5 kg/m | Approx. 0.9 kg/m |
| Flexibility | Bend radius = 4 × OD | Bend radius = 6 × OD |
| Corrosion Resistance | No metal – no rust | Steel can corrode, needs protective coating |
| Installation | Can be bent by hand | Needs bending tools |
Integrated Conductive Layer – Disperses static through carbon black or conductive fiber inside the hose
No Grounding Hardware Needed – Unlike metal-braided hoses, no risk of grounding failure
Maintenance-Free – Eliminates the need for regular electrical continuity checks
| Anti-Static Feature | Aramid Hose | Steel Wire Hose |
|---|---|---|
| Static Discharge | Conductive inner layer | Dependent on metal continuity |
| Reliability | Consistent, no degradation | May fail with corrosion or poor joints |
| Maintenance | Not required | Periodic checks required |
CNG & LNG Vehicles – Cuts weight to extend driving range and improve fuel economy
Gas Refueling Stations – Flexible routing in complex piping systems
Marine & Industrial Settings – Corrosion-free in saltwater or humid conditions
Inner Tube – Anti-static thermoplastic with excellent gas sealing
Reinforcement Layer – Lightweight yet strong aramid fiber braid
Bonding Layer – High-adhesion compound for structural integrity
Outer Cover – UV, weather, and abrasion-resistant thermoplastic
| Common Problem | Our Solution |
|---|---|
| “Hoses add too much weight to vehicles.” | Weight reduced by about 40% |
| “Difficult to route hoses in tight spaces.” | 50% more flexibility, easy hand bending |
| “Rust and corrosion in damp areas.” | Fully rust-proof due to non-metallic build |
Length range: 1 m to 50 m

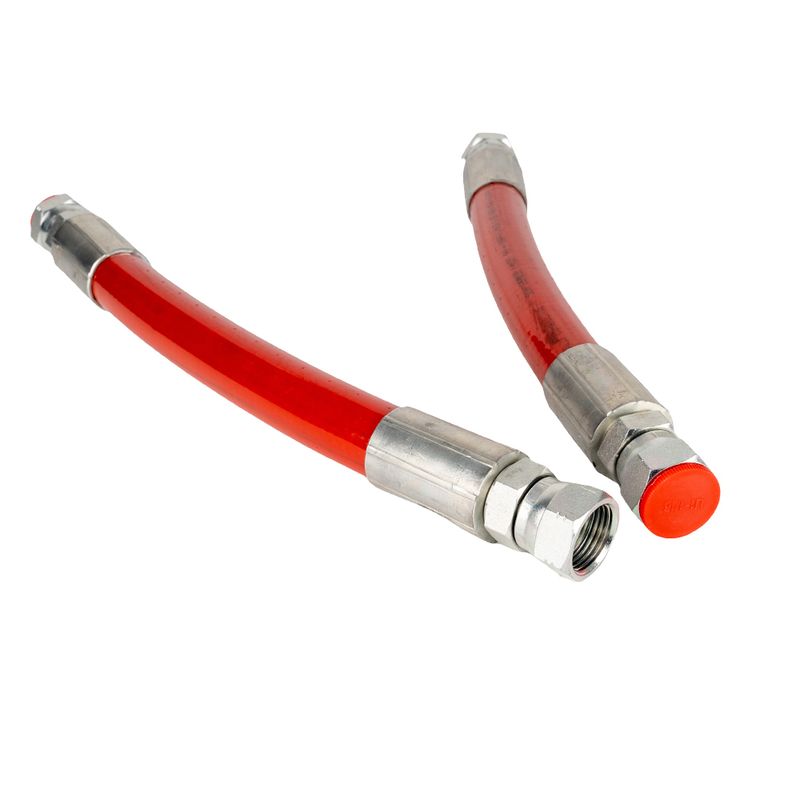

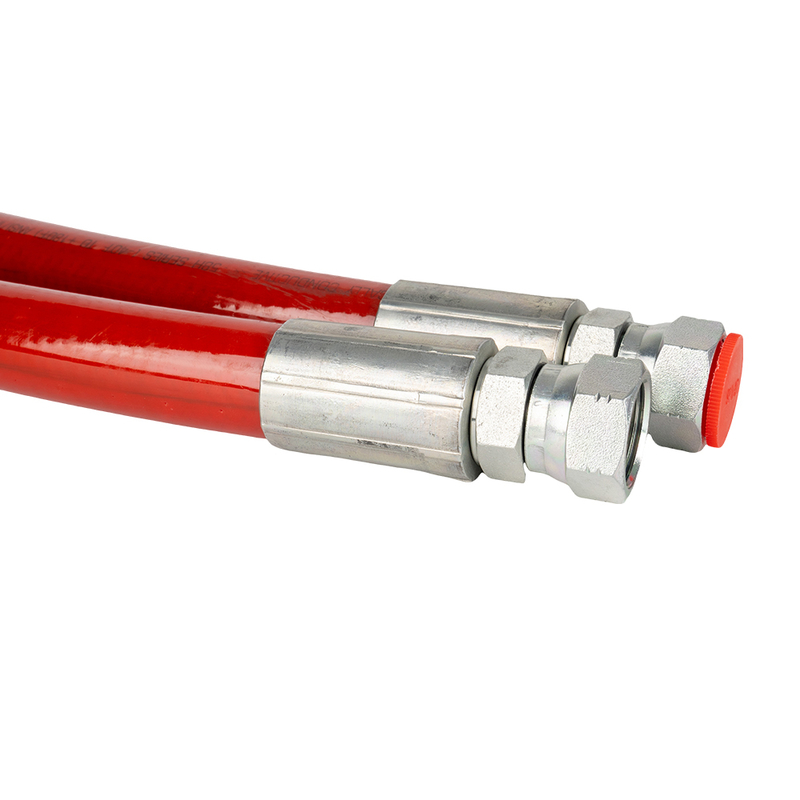

Fitting choices: SAE J2044 threads, clamp fittings, quick-connect couplers
Available colors: Yellow, Blue, Red for easy pressure identification
Global Reach – Products in service across 30+ countries, including key CNG markets like China, India, Russia, Brazil, and Iran
Proven Track Record – Over 10 years in production, more than 5 million meters delivered
