Place of Origin:
Jiangsu, China
Hàng hiệu:
PassionCo
Chứng nhận:
ISO19031/AS1869
Model Number:
1/4"-1"
video
Product Description

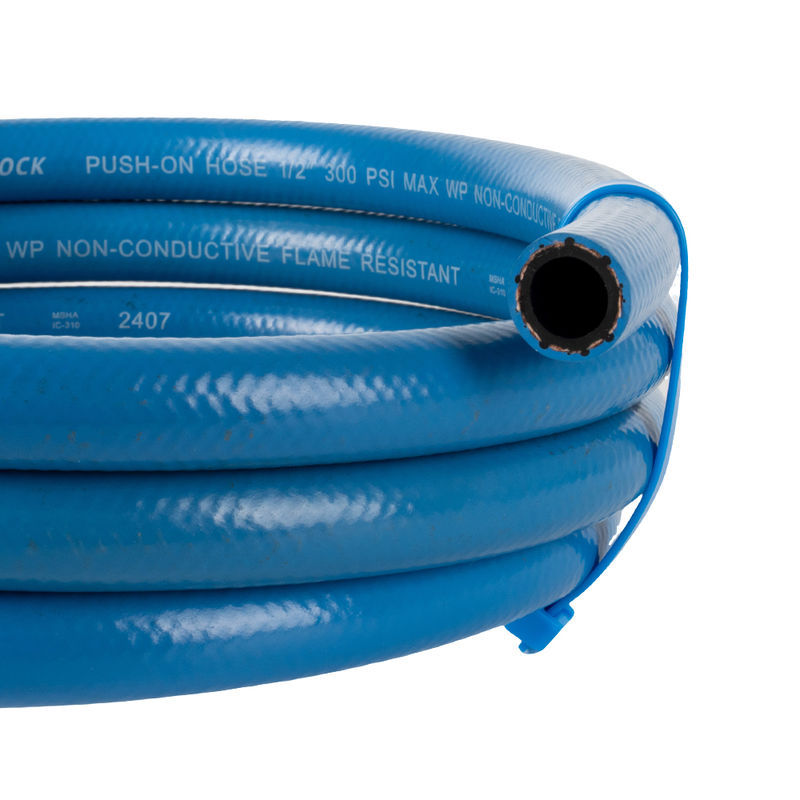

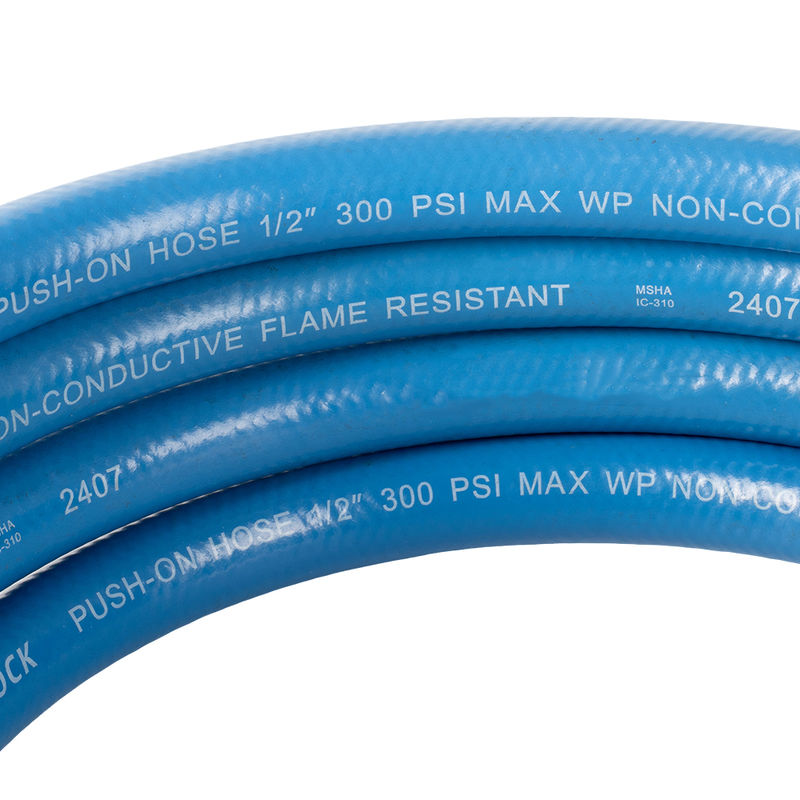

Clamp-Free Push Hose | Rated 300 PSI | Fuel, Air & Liquid Compatible
Sizes Range: 1/4 inch to 1 inch | Push-to-Connect Design | Suited for Heavy-Duty Tasks
Known widely as a Push-Lock or Push-On hose, this product allows installers to connect fittings swiftly without external clamps. Its flexible build and 300 PSI rating make it a favorite for factories and maintenance teams needing dependable hose solutions.
Clamp-Free Connection
Just push the hose onto the fitting. Save time with tool-free assembly.
Oil-Resistant Inner Tube
Made with NBR synthetic rubber, the inner tube resists petroleum-based products and meets RMA-A specifications.
Abrasion and Weather Protection
The CSM outer cover resists cuts, sunlight, ozone, and harsh weather.
Flexible and Durable Under Stress
Rated for millions of bending operations—ideal for mobile equipment or repetitive motion zones.
Temperature Tolerance
Performs well between -30°C and 120°C, covering most operational environments.
Electrical Resistance
Non-conductive rubber structure tested to over 6000V, making it suitable for sensitive electrical workplaces.
Automated Robotics
Molding and Assembly Machines
Gas Handling for Welding
General Air, Oil, and Water Lines
Reel Systems and Cable Management
Whether it's industrial automation or vehicle assembly plants, this hose stands up to the job.
Certifications: ISO 19013 / AS 1869 compliant
Safety Margin: 4:1 burst to working pressure

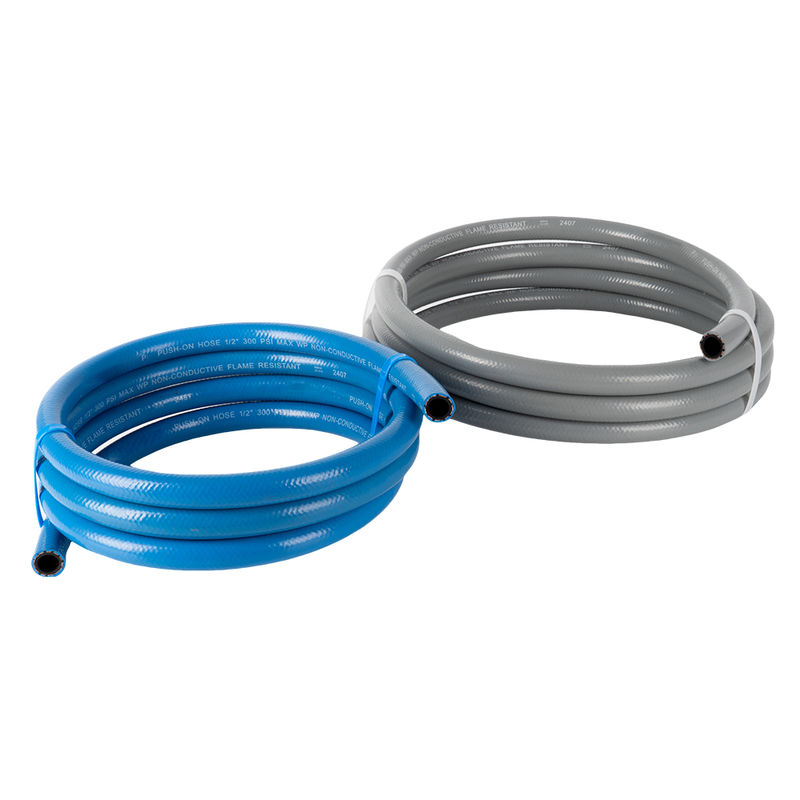

Color Choices: Black, Red, Blue; Special colors available
Packaging: Export-standard, customized lengths or bulk coil shipment available
| Layer | Material | Benefits |
|---|---|---|
| Inner Tube | NBR | Oil and fuel resistance |
| Reinforcement | High-Strength Fiber | Maintains pressure with flexibility |
| Outer Cover | CSM | Resists UV, ozone, and abrasion |
| Code | Size | I.D. (mm) | O.D. (mm) | Working Pressure | Burst Limit | Min Bend Radius | Weight | Standard Roll Length |
|---|---|---|---|---|---|---|---|---|
| PPL -06 | 1/4" | 6.4 | 13 | 300 PSI | 1200 PSI | 50 mm | 0.15 kg/m | 100 m |
| PPL -08 | 5/16" | 7.9 | 15 | 300 PSI | 1200 PSI | 60 mm | 0.18 kg/m | 100 m |
| PPL-10 | 3/8" | 9.5 | 17 | 300 PSI | 1200 PSI | 70 mm | 0.23 kg/m | 100 m |
| PPL -13 | 1/2" | 12.7 | 21 | 300 PSI | 1200 PSI | 120 mm | 0.31 kg/m | 100 m |
| PPL -16 | 5/8" | 15.9 | 24 | 300 PSI | 1200 PSI | 150 mm | 0.38 kg/m | 60 m |
| PPL -19 | 3/4" | 19 | 28 | 300 PSI | 1200 PSI | 170 mm | 0.5 kg/m | 60 m |
| PPL -25 | 1" | 25.4 | 36 | 300 PSI | 1200 PSI | 200 mm | 0.74 kg/m | 60 m |
For operations demanding fast assembly, lasting durability, and versatile fluid compatibility, this clamp-free Push-On Hose is a reliable solution. Private labeling and bulk supply available on request.
