Place of Origin:
China
Hàng hiệu:
Passion
Chứng nhận:
ISO9001 CE
Model Number:
PPD
video
Available Sizes: 1/4", 1" | Non-Clamp Design | Long-Lasting Performance

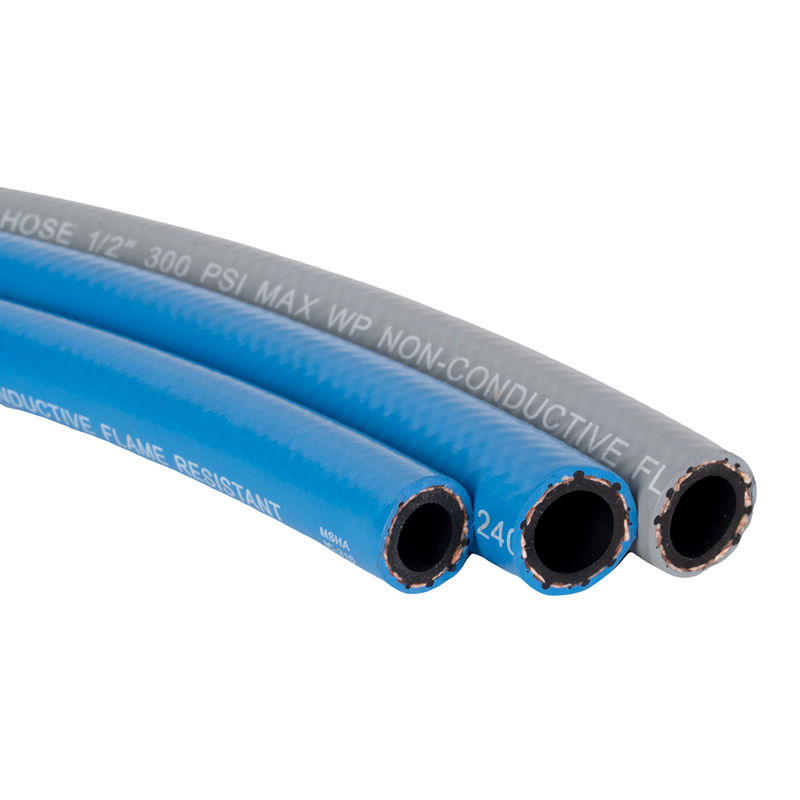

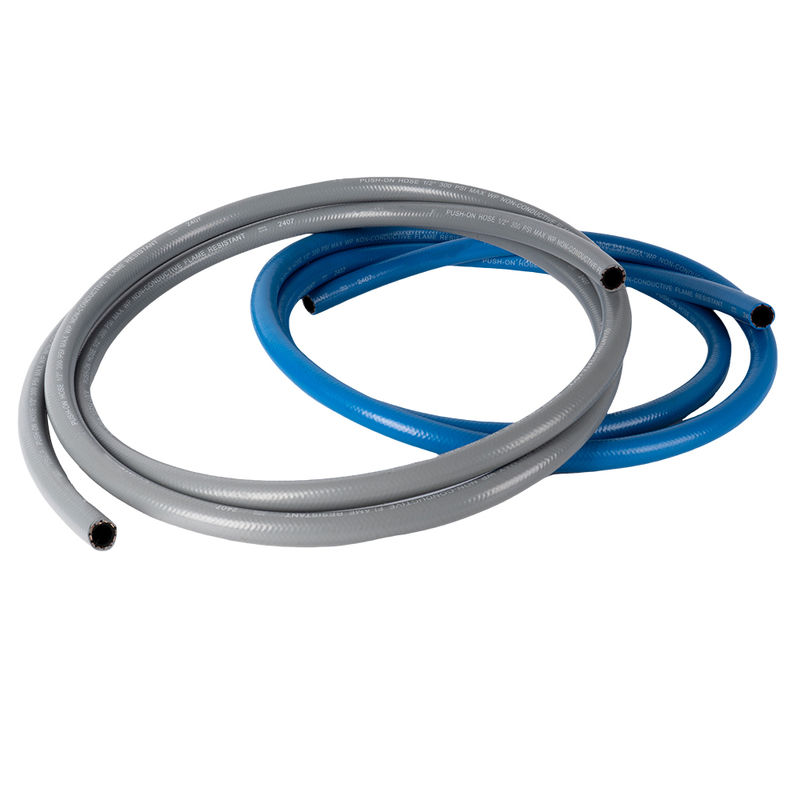

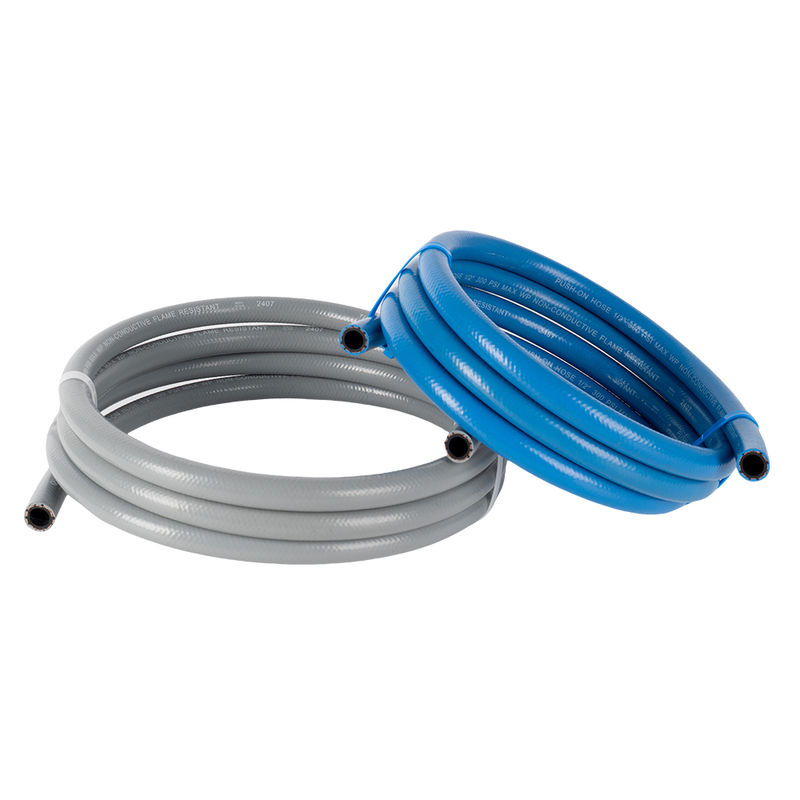

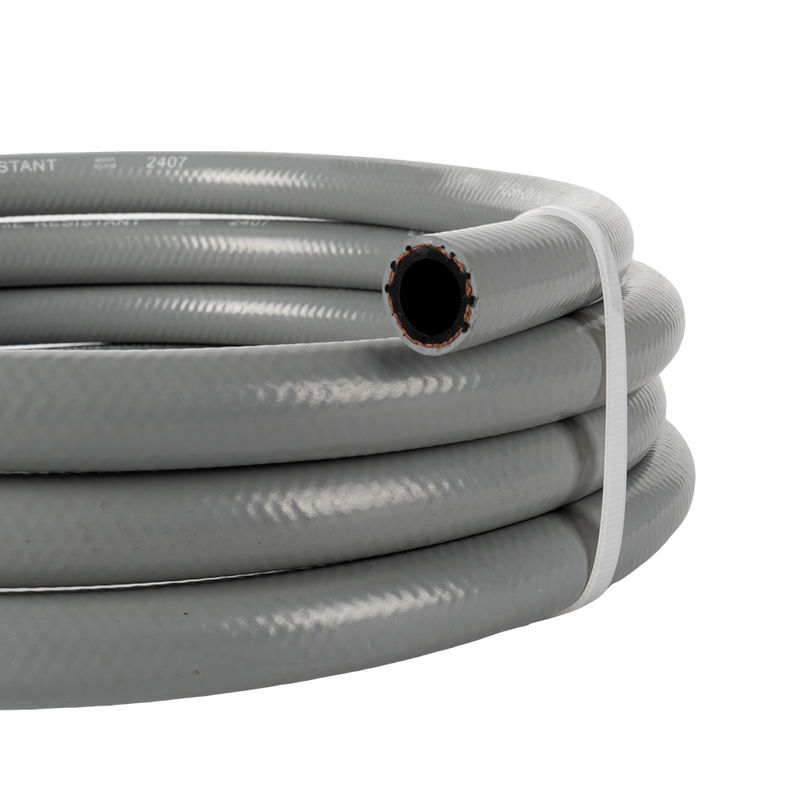

This Push Lock Hose, also known as Push-On Hose or Push-Lock Hose, is engineered for fast, clamp-free assembly and long-term reliability. Featuring 300 PSI working pressure, outstanding flexibility, and extended service life, it is an ideal solution for demanding industrial environments.
No Clamp Required: Easily connects with push-on fittings – no need for external clamps or tools.
RMA Class A Oil-Resistant: Inner tube crafted from NBR synthetic rubber for superior resistance to fuel, oil, and gas.
Robust Outer Shell: Made from CSM rubber, offering excellent abrasion, UV, and weather resistance.
Flexible & Durable: Withstands over 5 million bending cycles, ideal for use in robotic arms, cable reels, or applications involving repetitive motion.
Wide Temperature Tolerance: Operates reliably from -30°C to 120°C, suitable for both indoor and outdoor conditions.
High Voltage Insulation: Non-conductive structure capable of withstanding voltages of 6000V or more.
Perfectly suited for:
Automation & Robotics
Assembly Lines & Molds
T-Grade Welding Equipment
Compressed Air, Oil, Water, and Emulsion Transfer
Spindle Retractors or Coiling Systems
Whether in automotive manufacturing or precision welding setups, this hose is built to perform under pressure.
Standards Compliant: Manufactured in accordance with ISO 19013 and AS 1869, meeting top European and U.S. industrial quality benchmarks.
Safety Factor: 4:1 burst-to-working pressure ratio ensures maximum operating safety.
Color Options: Available in black, red, blue, or customized colors upon request.
Packaging: Standard export-safe packaging, available with pre-cut lengths or palletized on request.
| Layer | Material | Properties |
|---|---|---|
| Inner Tube | NBR Synthetic Rubber | RMA-A grade, oil & gas resistant |
| Reinforcement | High-Tensile Fiber | Enhanced pressure handling & flexibility |
| Outer Cover | CSM Rubber | UV-resistant, abrasion-resistant, weatherproof |
Product Specifications
| Part No. | Size | I.D. (mm) | O.D. (mm) | Working Pressure | Burst Pressure | Min. Bend Radius | Weight (kg/m) | Standard Length |
| -06 | 1/4" | 6.4 | 13 | 300 PSI | 1200 PSI | 50 mm | 0.15 | 100 m |
| -08 | 5/16" | 7.9 | 15 | 300 PSI | 1200 PSI | 60 mm | 0.18 | 100 m |
| -10 | 3/8" | 9.5 | 17 | 300 PSI | 1200 PSI | 70 mm | 0.23 | 100 m |
| -13 | 1/2" | 12.7 | 21 | 300 PSI | 1200 PSI | 120 mm | 0.31 | 100 m |
| -16 | 5/8" | 15.9 | 24 | 300 PSI | 1200 PSI | 150 mm | 0.38 | 60 m |
| -19 | 3/4" | 19 | 28 | 300 PSI | 1200 PSI | 170 mm | 0.5 | 60 m |
| -25 | 1" | 25.4 | 36 | 300 PSI | 1200 PSI | 200 mm | 0.74 | 60 m |
Need a hose that offers tool-free connection, industrial durability, and maximum flexibility?
Our Push Lock Hose is the go-to choice for automation and power equipment integrators.
Custom packaging, branding, and bulk orders available upon request.
